TS 1600
Machines (2025) » Laminating
Heavy-duty laminator built for high-pressure, high-quality lamination using heat assist designed to deliver streak-free results without silvering, even on rough and UV-printed surfaces.
INTRO

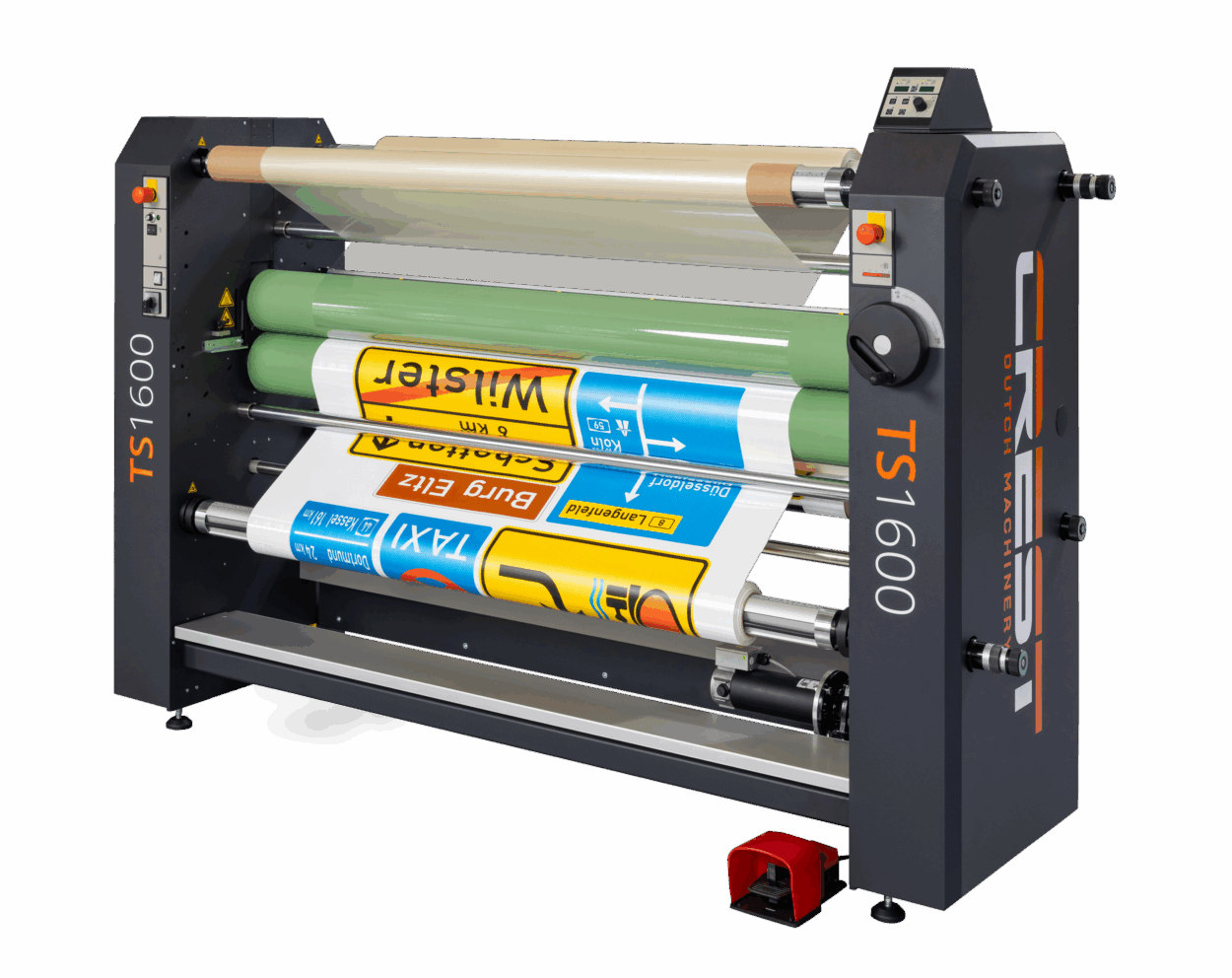

The Crest TS 1600 is a heavy-duty laminator built for high-pressure, high-quality lamination using heat assist — designed to deliver streak-free results without silvering, even on rough and UV-printed surfaces. It runs without compressed air and accepts board, sheet and roll materials for efficient production workflows.
TOP BENEFITS
- Anti-silvering quality: high nip pressure + heat assist for clean, streak-free lamination on demanding (UV) substrates.
- High throughput: line speed up to 15 m/min (optionally higher with the required safety measures).
- Material range & capacity: 1,600 mm working width (max. width 1,650 mm), substrate thickness up to 130 mm, 3” cores, roll Ø up to 360 mm, roll weight up to 80 kg
Features
– High pressure + heat assist:
heatable top roller up to 150°C supports consistent adhesive activation and stable results.
– Tight web control:
heavy-duty unwind brake with combined wrinkle control keeps tension stable throughout the run.
– Proper rewinding:
heavy-duty wind-up friction clutch supports controlled roll winding and reliable output quality.

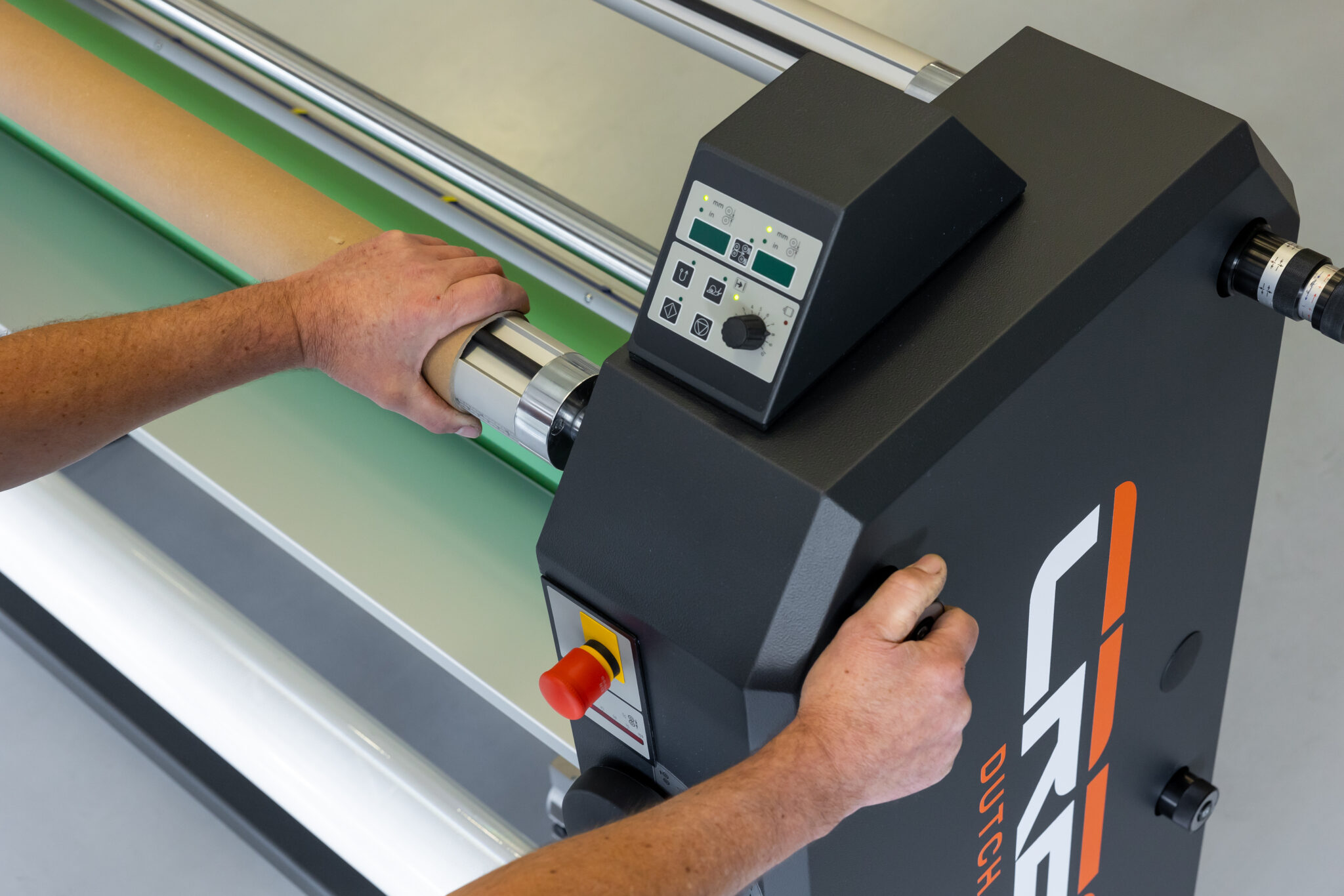

– Fast operation:
rotatable control panel, Start/Stop foot pedal and clear LED pressure readout (front; rear optional).

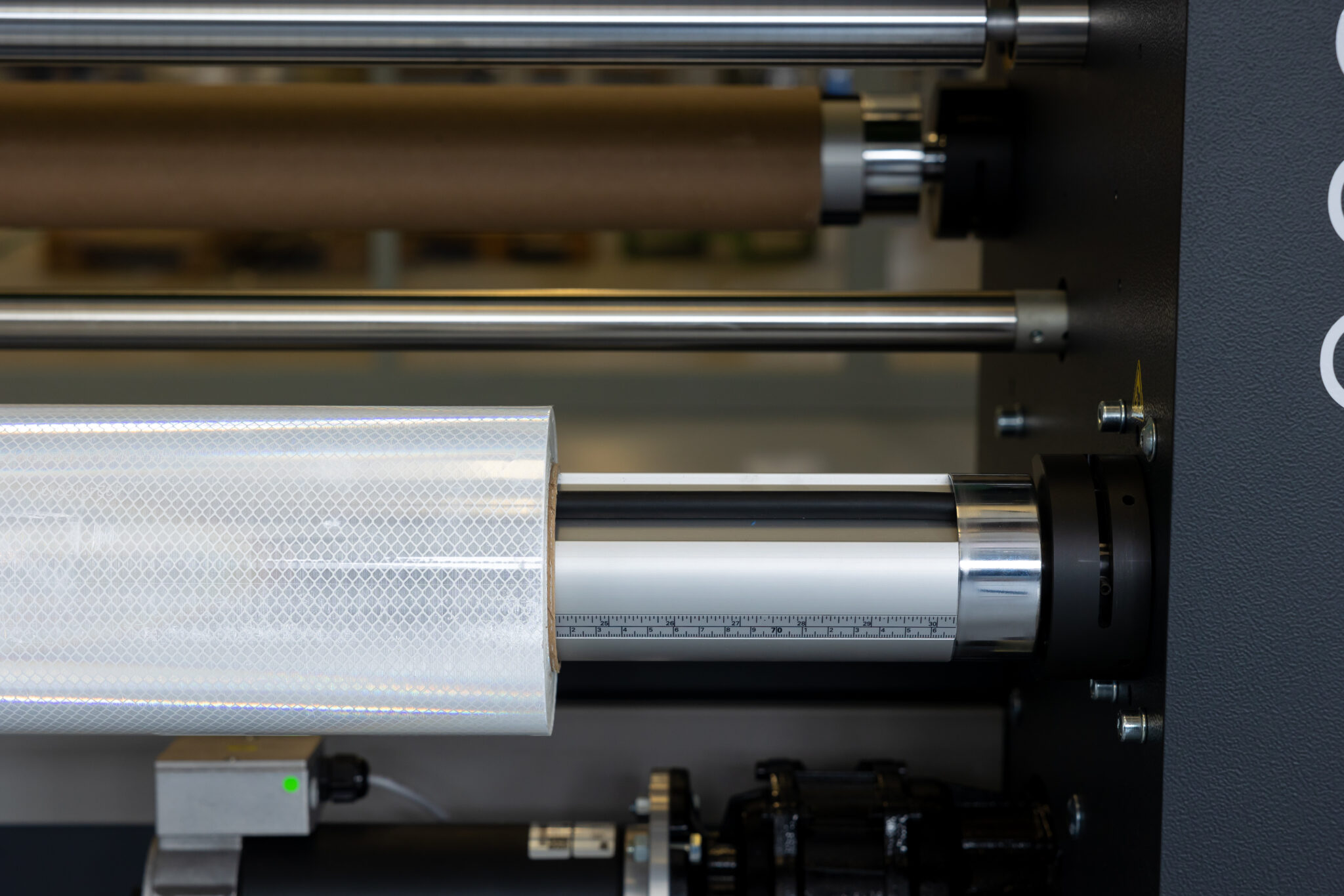

– Smart layout for unwinding/rewinding:
2x unwind axles with wrinkle control + 2x wind-up axles, positioned for efficient handling.
– Static control as standard:
ionisation bar included to eliminate static charge

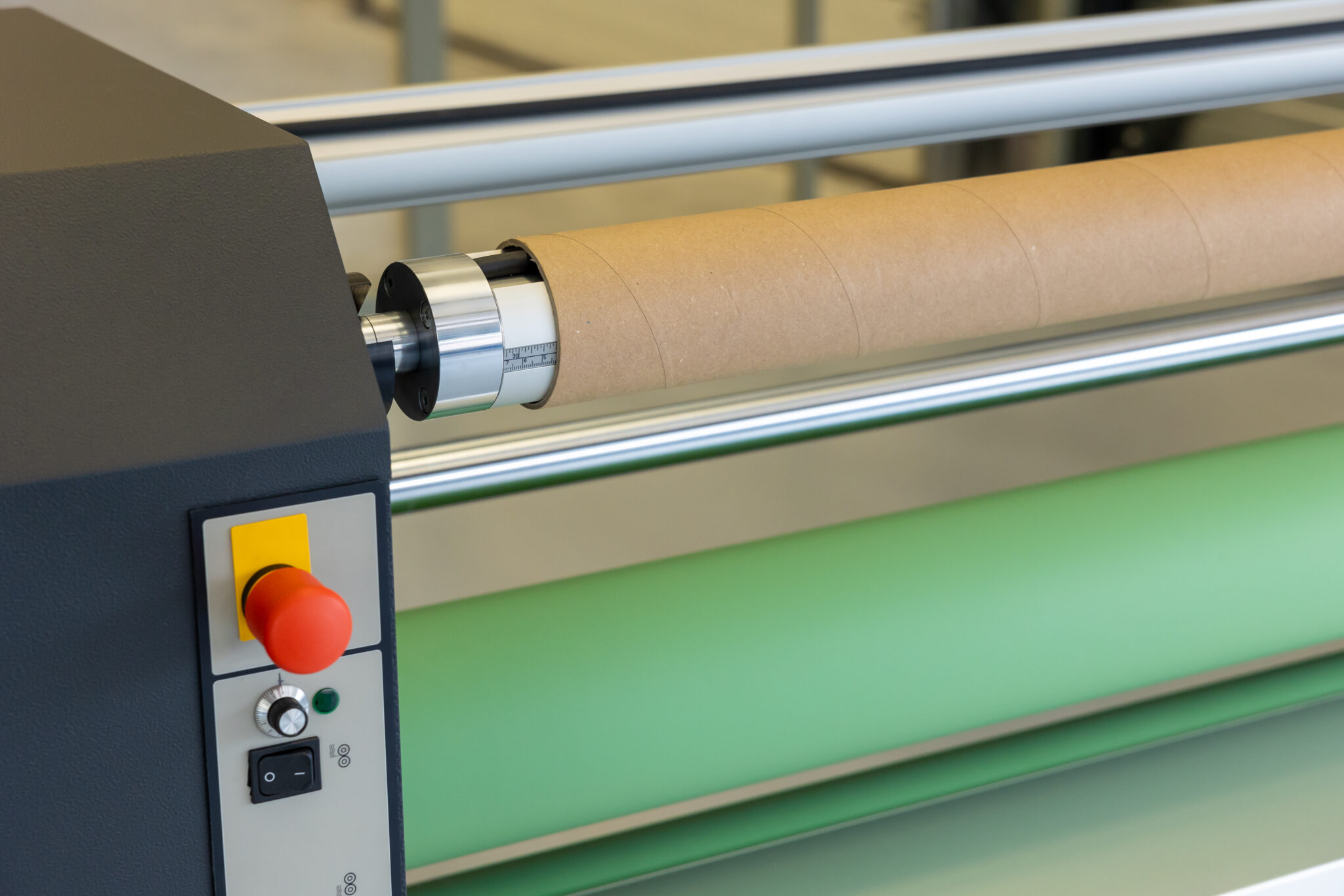

– Safety & peace of mind:
optical photocells, mechanical finger protection and corner emergency stops plus 5-year warranty with biannual service
